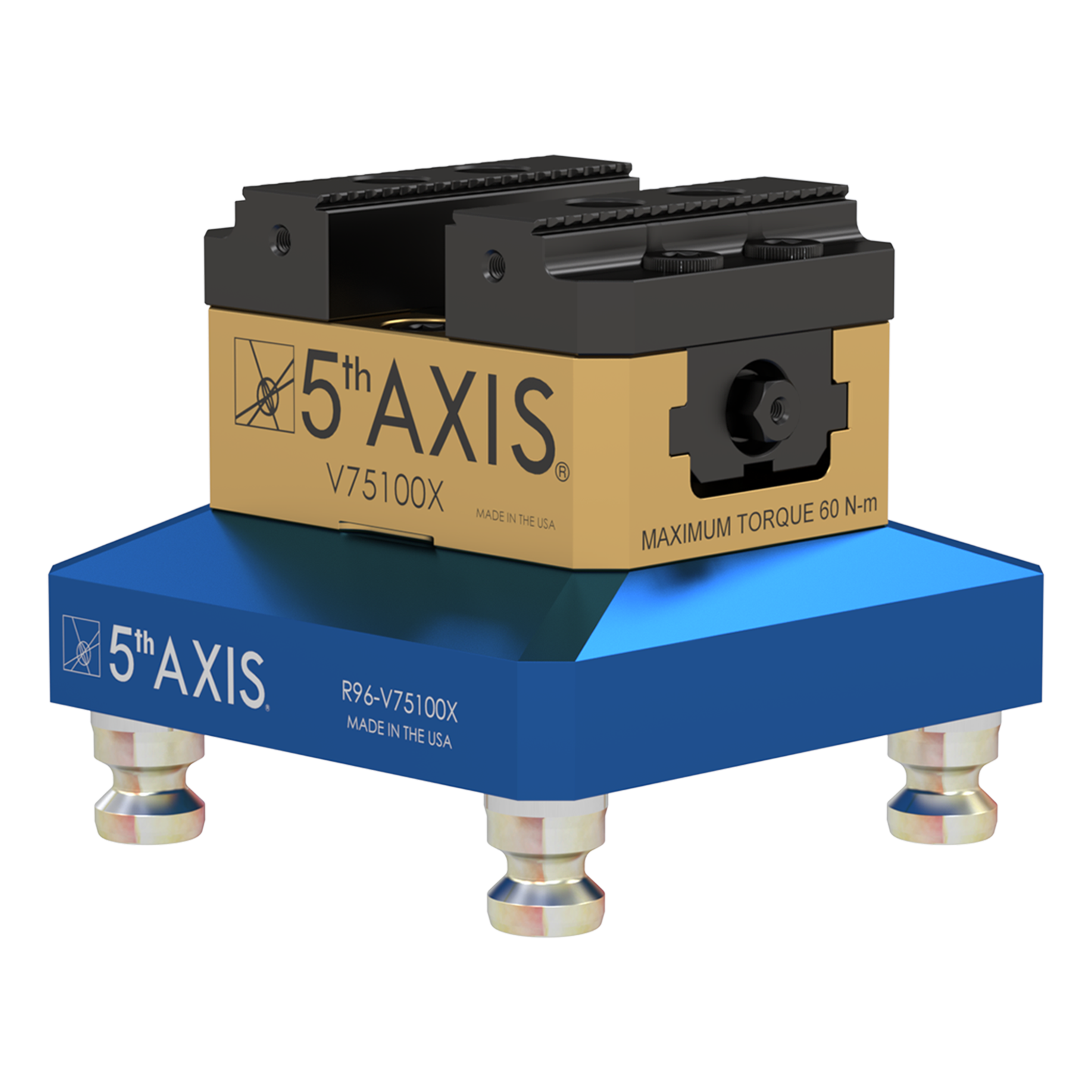

Small Self-Centering Vise Top Tooling

R96-V75100X $1,439.00

The most recent revision of the V75100 vise.
Equipped with 4-bolt jaw mounting for robust clamping.
Features sharper teeth for a better grip.
Enhance machining capabilities with RockLock™ 96mm Quick Change System.

Features

Invest in the future of machining with our 5th Axis RockLock™ 96mm Quick Change Top Tooling System. Stay competitive, boost your productivity, and achieve exceptional results in your machining operations. Trust in our commitment to quality, precision, and innovation, and take your machining capabilities to new heights today. The V75100X is the most recent revision of our V75100 vise. Now equipped with 4 bolt jaw mounting to reduce jaw lift providing robust clamping and sharper teeth for a better bite.

Downloads

File Name	Size
2D Drawing	237 KB	Download Now
3D Model	167 KB	Download Now
User Manual	403 KB	Download Now
Dovetail Stock Prep	1 MB	Download Now

Suggested Products

Only 19 left in stock (can be backordered)

Time = Money

Reduce setup times by 80-95%.¹

Swap Vises & Fixtures Quickly.

A standard mounting pattern allows for easy movement of vises, fixtures, and tooling from machine to machine no setup time.

High Accuracy

Patented free float design ensures equal force on all 4 pull studs guaranteeing repeatability of less than .0003″ (8 microns)

Standardize Your Setups.

Stop building custom adapters and subplates for every new job that comes into the shop. Job changeover becomes simple and repeatable with the RockLock™ system, saving you time and money.

Simplify Programming.

Established work offsets help speed up programming time when adjusting for different jobs and top tooling.

Easy Integration.

Pull studs are easily integrated into existing fixtures and subplates. Standard 52mm and 96mm spacing allow for compatability with competitive systems.

Built To Last

All RockLock™ baseplates feature hardened steel rings and locking mechanisms. This ensures repeatability and wear resistance for the life of the product.

Smooth Operation

All units are operated via a simple allen wrench. The leadscrew only needs to be operated from one side, but has access from both sides; no reaching around your vise or parts.

Replacement Parts

Compact Self-Centering Vise (75mm x 100mm x 56mm)

V75100X

$899.00
