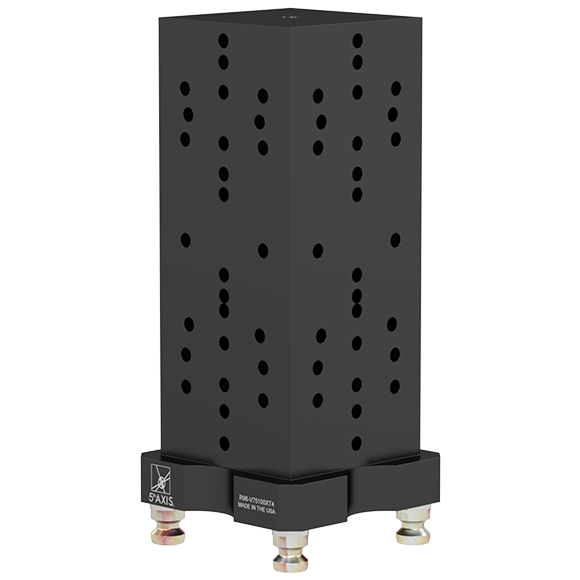

Four-Sided Tombstone, Aluminum 12 Positions
R96-V75100T4 $1,629.00- 4-sided tombstone for mounting up to 12x V75100X vises.
- Compatible with RockLock™ system, suitable for any 96mm RockLock™ base.
- Includes 4x PS20F pull studs.
Features
This 4-sided dedicated V75100X vise tombstone allows for mounting of up to 12x V75100X vises. The RockLock™ compatible tombstone can be mounted onto any 96mm RockLock™ base. 96mm spacing on the bottom of the tombstone. 4x PS20F are included.
Downloads
| File Name | Size | |
|---|---|---|
| 2D Drawing | 346 KB | Download Now |
| 3D Model | 184 KB | Download Now |
Only 6 left in stock (can be backordered)
The Power Of
Modular Tombstones
01
Repeatable Platform
02
Universal Spacing
03
Stable Support
Why Choose Rocklock™?
Maximize Parts Per Cycle
Run more parts per cycle. Eliminate unnecessary tool changes and rapid moves by running multiple parts per cycle. Reduction of part handling is a big benefit gained by utilizing a horizontal cnc. Modular tombstones further those benefits, by making changeover and setup times shorter and more efficient.
Tombstones of all sizes
We see tombstones as a simplified version of automation. With that said, we designed tombstones for all sizes and types of cnc machines. Our original designs were built for small and medium 4th axis machines. The line has quickly grown to encompass vertical and horizontals up to 500mm.
