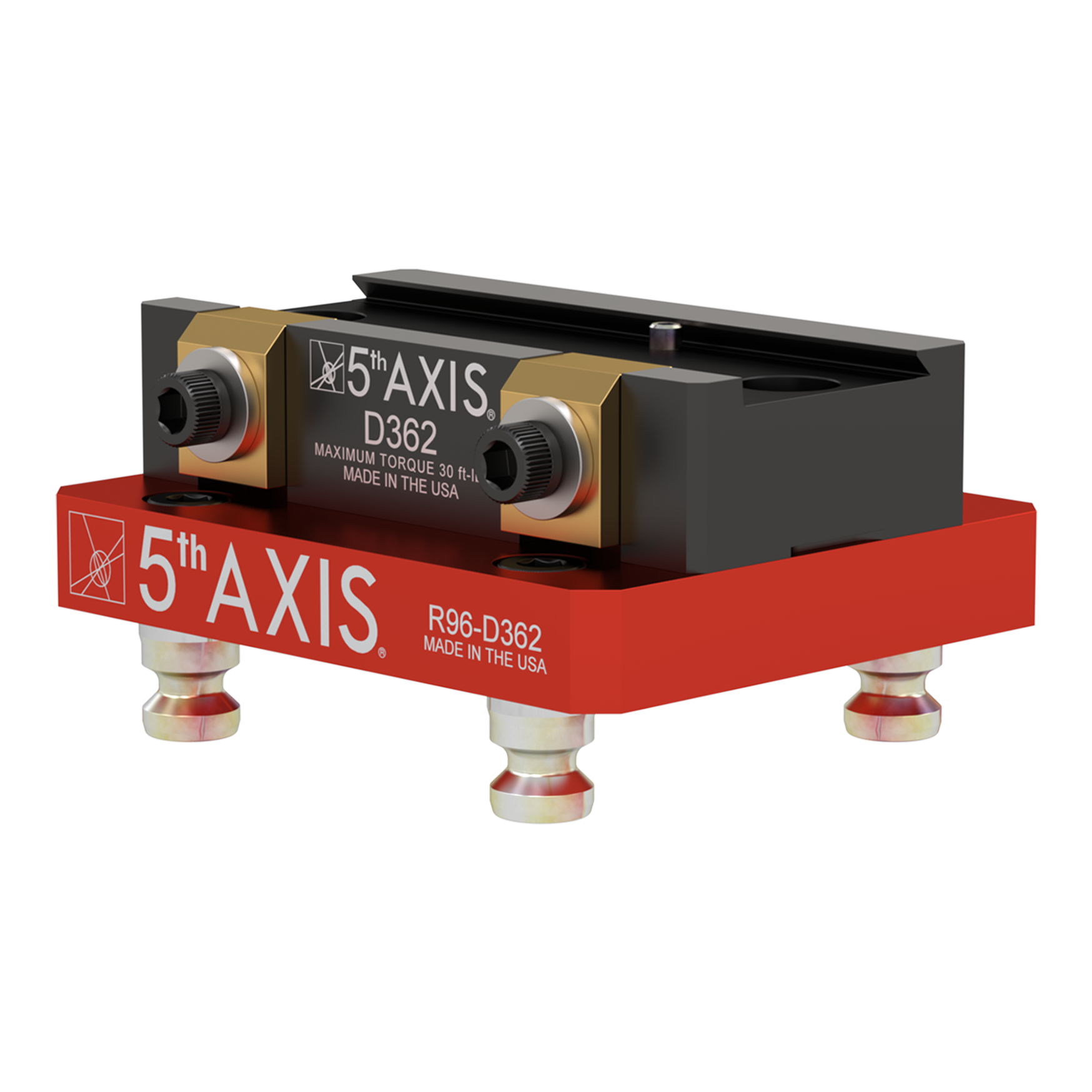

D362 Dovetail Top Tooling

R96-D362

$1,232.00
  • Size: 6” x 4.95” x 2.225”
  • Fixture: D362
  • Pull studs: 4x PS20F

RockLock 96mm Top Tooling – D362
1ea: R96-D362-1 [Riser]
1ea: D362 [Fixture]
4ea: PS20F [Pull Studs]

File Name Size
2D Drawing 68 KB Download Now
3D Model 1 MB Download Now
D362 Dovetail Stock Preparation (1) 1 MB Download Now

In stock

ADD TO QUOTE

Rocklock

Time = Money

Reduce setup times by 80-95%.1

Swap Vises & Fixtures Quickly.

A standard mounting pattern allows for easy movement of vises, fixtures, and tooling from machine to machine no setup time.

High Accuracy

Patented free float design ensures equal force on all 4 pull studs guaranteeing repeatability of less than .0003″ (8 microns)

Standardize Your Setups.

Stop building custom adapters and subplates for every new job that comes into the shop. Job changeover becomes simple and repeatable with the RockLock system, saving you time and money.

Shop Now

Simplify Programming.

Established work offsets help speed up programming time when adjusting for different jobs and top tooling.

Shop Now

Easy Integration.

Pull studs are easily integrated into existing fixtures and subplates. Standard 52mm and 96mm spacing allow for compatability with competitive systems.

PS20F PULL STUD PRINT

Built To Last

All RockLock baseplates feature hardened steel rings and locking mechanisms. This ensures repeatability and wear resistance for the life of the product.

Smooth Operation

All units are operated via a simple allen wrench. The leadscrew only needs to be operated from one side, but has access from both sides; no reaching around your vise or parts.
