DM12 Pyramid Dovetail Top Tooling (52mm)

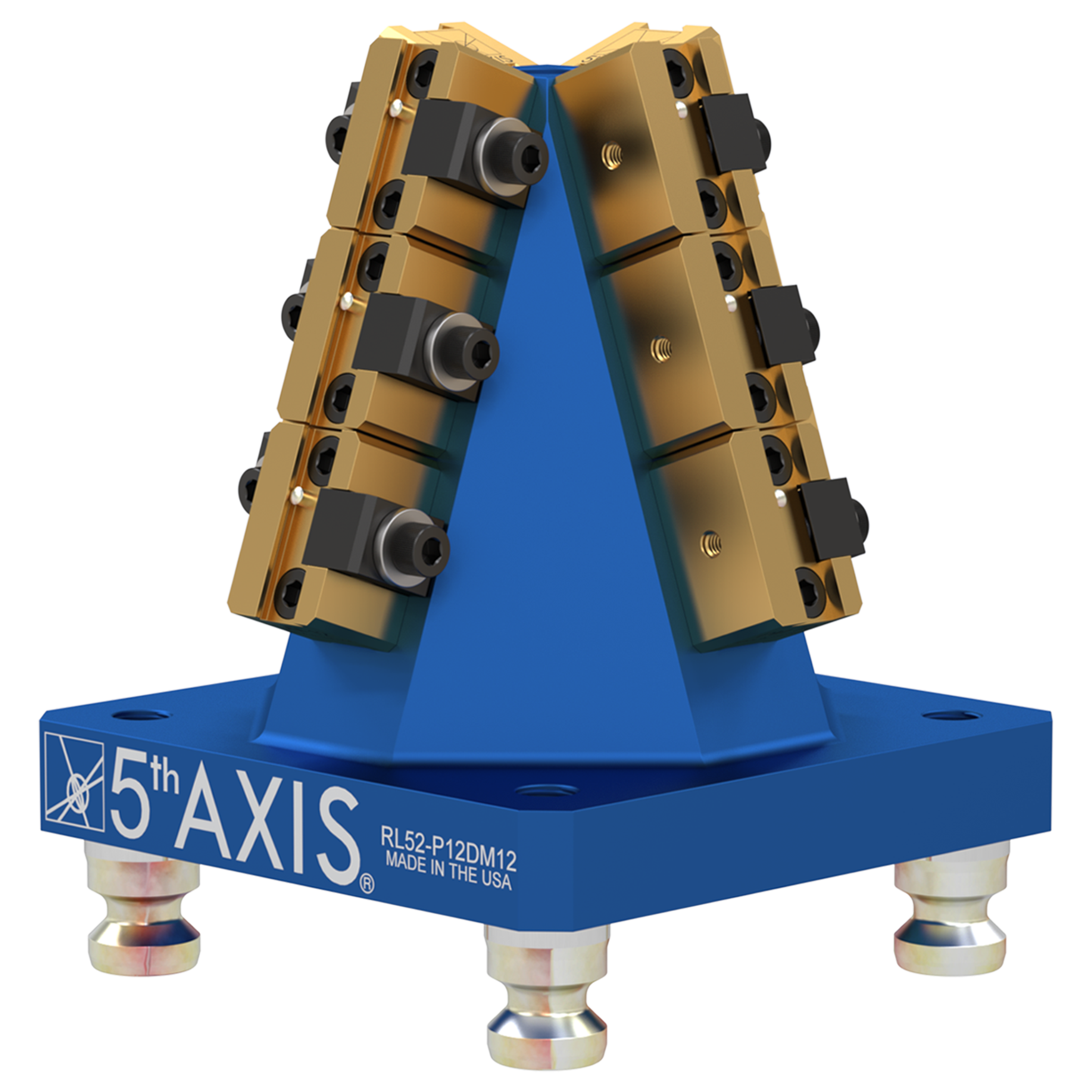

Name: DM12 Pyramid Dovetail Top Tooling (52mm)
Brand: 5th Axis
SKU: R52-P12DM12
Rating: 5 (1920 reviews)

R52-P12DM12 $4,147.00

Versatile and High-Performance 52mm Workholding Fixture
Engineered to Elevate Productivity, Accuracy, and Efficiency
The Smallest Dovetail Fixture in the 5th Axis Workholding Line
Takes Small Part Production to the Next Level
Built for 5-Axis Machining
Allows for Up to 12 Parts to be Run on One Singular Fixture

Features

Introducing our versatile and high-performance 52mm line of Workholding Fixtures, designed to meet the demands of precision machining. Whether you’re a seasoned professional or just starting your journey in CNC machining, these fixtures are engineered to elevate your productivity, accuracy, and efficiency to new heights.The R52-P12DM12 is the smallest dovetail fixture in the 5th Axis workholding line. The R52-P12DM12 takes small part production to the next level. Built for 5-axis machining this multi-axis pyramid allows for up to 12 parts to be run on one singular fixture.

Downloads

File Name	Size
3D Model	274 KB	Download Now
Dovetail Stock Prep & Troubleshooting Guide	1 MB	Download Now

Suggested Products

Only 8 left in stock (can be backordered)

Time = Money

Reduce setup times by 80-95%.¹

Swap Vises & Fixtures Quickly.

A standard mounting pattern allows for easy movement of vises, fixtures, and tooling from machine to machine no setup time.

High Accuracy

Patented free float design ensures equal force on all 4 pull studs guaranteeing repeatability of less than .0003″ (8 microns)

Standardize Your Setups.

Stop building custom adapters and subplates for every new job that comes into the shop. Job changeover becomes simple and repeatable with the RockLock™ system, saving you time and money.

Simplify Programming.

Established work offsets help speed up programming time when adjusting for different jobs and top tooling.

Easy Integration.

Pull studs are easily integrated into existing fixtures and subplates. Standard 52mm and 96mm spacing allow for compatability with competitive systems.

Built To Last

All RockLock™ baseplates feature hardened steel rings and locking mechanisms. This ensures repeatability and wear resistance for the life of the product.

Smooth Operation

All units are operated via a simple allen wrench. The leadscrew only needs to be operated from one side, but has access from both sides; no reaching around your vise or parts.

Replacement Parts

Small Dovetail Fixture - Metric (21mm x 32mm x 19mm)

DM12

$249.00
