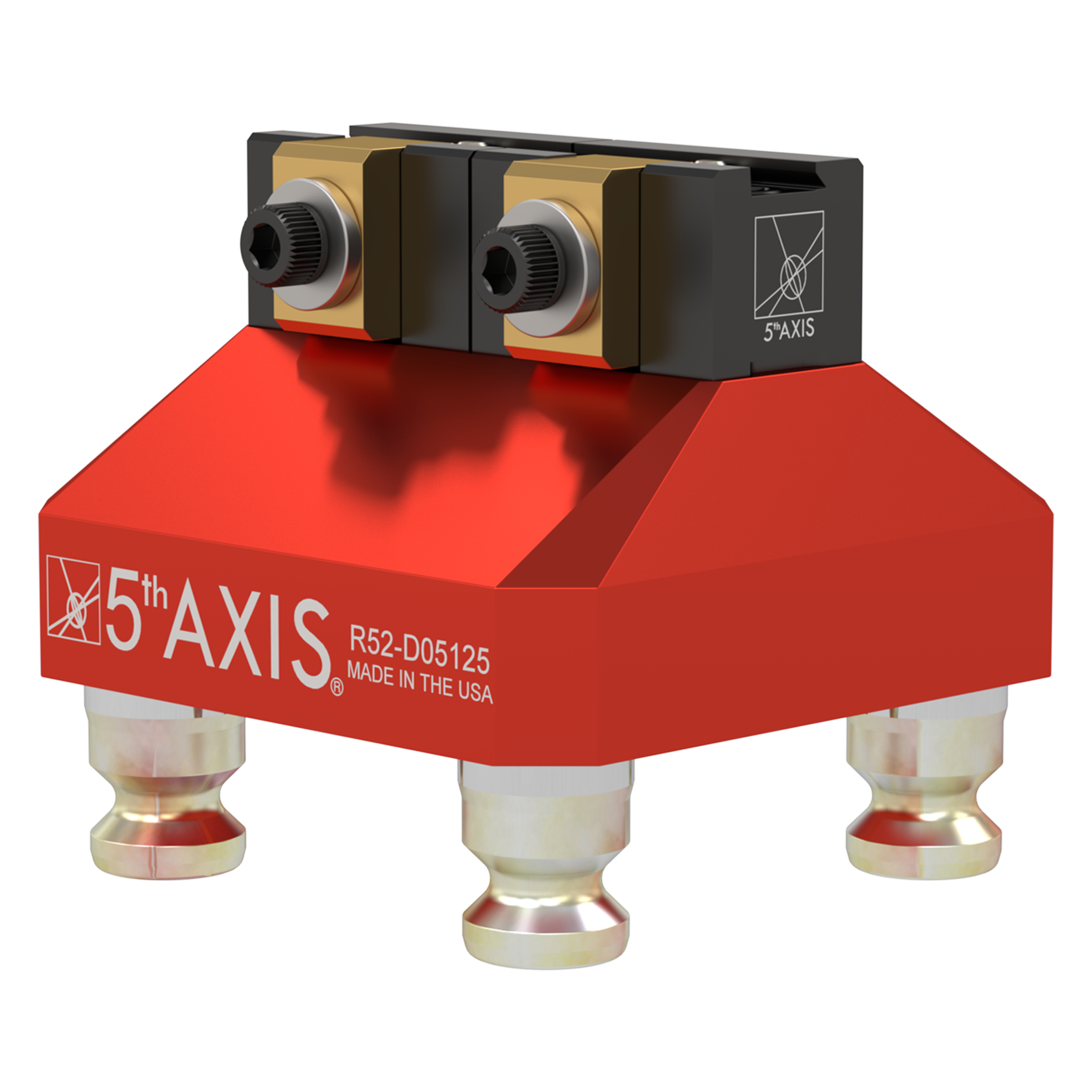

2x D05125 Dovetail Top Tooling

$959.00

Versatile and High-Performance 52mm Workholding Fixture
Engineered to Elevate Productivity, Accuracy, and Efficiency
Smallest Dovetail Fixture in the 5th Axis Workholding Line
Features a Wedge-Style Clamp for Superior Gripping Force
Low-Profile Design Optimizes Tool Clearance
Ideal for Multi-Axis Work on Smaller Parts

Features

Introducing our versatile and high-performance 52mm line of Workholding Fixtures, designed to meet the demands of precision machining. Whether you’re a seasoned professional or just starting your journey in CNC machining, these fixtures are engineered to elevate your productivity, accuracy, and efficiency to new heights.The R52-2D05125 is the smallest dovetail fixture in the 5th Axis workholding line. The R52-2D05125 features a wedge style clamp for superior gripping force and a low profile design that optimizes tool clearance. This micro dovetail fixture is the perfect choice for multi-axis work on smaller parts.

Downloads

File Name	Size
3D Model	2 MB	Download Now
2D05125 Dovetail Stock Preparation (1)	1 MB	Download Now

Suggested Products

Out of stock

Time = Money

Reduce setup times by 80-95%.¹

Swap Vises & Fixtures Quickly.

A standard mounting pattern allows for easy movement of vises, fixtures, and tooling from machine to machine no setup time.

High Accuracy

Patented free float design ensures equal force on all 4 pull studs guaranteeing repeatability of less than .0003″ (8 microns)

Standardize Your Setups.

Stop building custom adapters and subplates for every new job that comes into the shop. Job changeover becomes simple and repeatable with the RockLock system, saving you time and money.

Simplify Programming.

Established work offsets help speed up programming time when adjusting for different jobs and top tooling.

Easy Integration.

Pull studs are easily integrated into existing fixtures and subplates. Standard 52mm and 96mm spacing allow for compatability with competitive systems.

Built To Last

All RockLock baseplates feature hardened steel rings and locking mechanisms. This ensures repeatability and wear resistance for the life of the product.

Smooth Operation

All units are operated via a simple allen wrench. The leadscrew only needs to be operated from one side, but has access from both sides; no reaching around your vise or parts.
