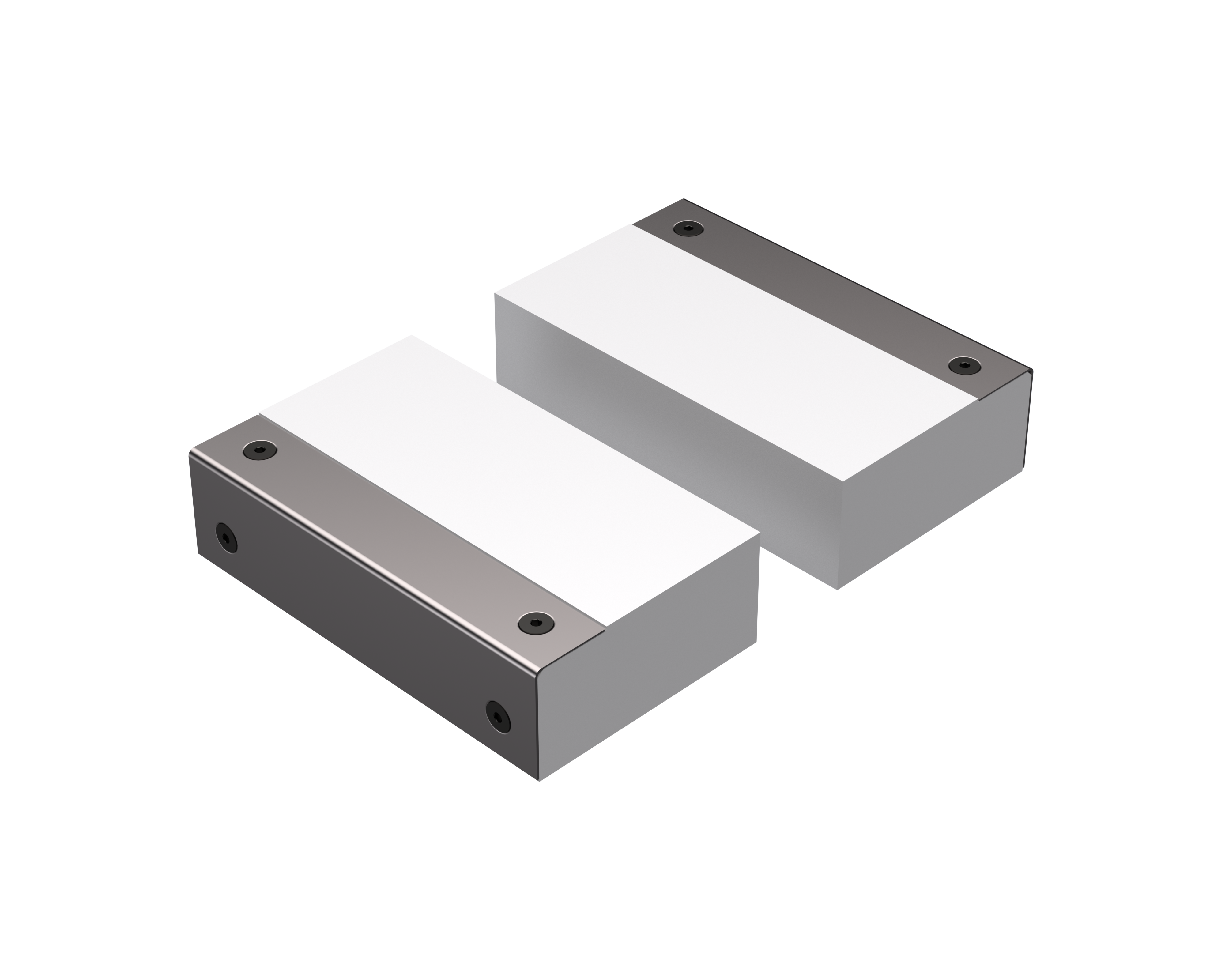

Anti-Lift Jaws (V562X & V510X)

AL52XA $299.00

Size: 125.73mm x 74.55mm x 33.66mm
Material: Aluminum (A)
Fits V562X, V510X self-centering vises
Reduces jaw deflection to less than 1 thou
Cleat and angled soft jaw pulls parts down under torque

Features

Anti-Lift Aluminum Machinable Jaw Starter Set, V562X/V510X
2ea: AL52X-1 [Cleat]
1ea: AL52-2A [Aluminum Anti-Lift Machinable Jaws]
2ea: AL52-3 [Bracket]

Specs

Size: 125.73mm x 74.55mm x 33.66mm

Weight: 6 lbs

Downloads

File Name	Size
3D Model	213 KB	Download Now
