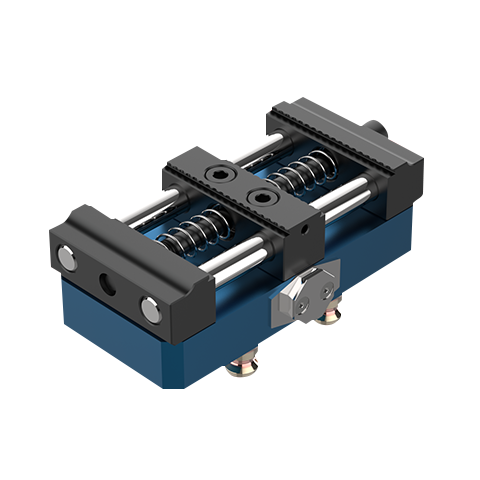

Automation RockLock Adapter w/ x1 PV3X-6B Vise (52mm)

A52-PV3X-6B

$773.00
    Size: 163.9mm x 80.9mm x 50.0mm (6.45” x 3.19” x 1.97”)
    Material: Aluminum
    Mounting: 52mm RockLock
    Note: Includes 1x PV3X-6A, 4x PS16F pull studs, 1x AG-C
    Weight: 14 lbs
    File Name Size
    3D Model 2 MB Download Now

    In stock

    ADD TO QUOTE

    Get A Grip

    With The New X-Series Hardware

    Our new X vises offer a 30% increase in clamping force and better overall rigidity. The 4-bolt jaw mounting system reduces jaw deflection while still allowing for reversible / quick-change jaw configurations.

    Shop Now

    THE X-SERIES GIVES YOU:

    25.1 KN

    CLAMPING FORCE

    4 Jaw Bolt Mounting

    4 bolt jaw mounting increased clamping force and rigidity by 30% compared to the original 2 bolt version.

    Higher Accuracy

    Redesigned truck features a key and dowel pin for better accuracy and repeatability.

    Same Compact Footprint

    Overall height + width + length is the same as the original vise design. Vise mounting also matches the original design.
