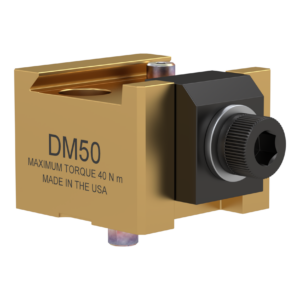

Dovetail Fixtures: Unleash unparalleled rigidity in a compact form factor with 5th Axis dovetail fixtures. Engineered for 4 and 5-axis machining applications, our dovetail fixtures are the epitome of strength and stability. Elevate your machining precision with unbeatable rigidity using 5th Axis dovetail fixtures.
A precision locating pin ensures the stock is centered in the fixture while ensuring the stock cannot be forced out of the fixture during machining.
The locating pin also provides high repeatability for in process inspection / movement from machine to machine.
All 5th Axis products utilize a 45 degree dovetail angle. Dovetails provide equal in and down force, meaning your parts are held more stable than any other workholding method. Minimal torque is required. If you need compact workholding with high repeatability and ultimate precision, then you need to use dovetail workholding.
Dovetailing reduces the amount of material you need to purchase via traditional clamping methods. Not only do you waste less of your stock, but dovetailing also reduces part deformation due to excessive torque; dovetails spread clamping force more evenly through the part and use down-force instead of lateral pressure.
5th Axis Dovetails can hold the majority of materials on the market today, everything from fragile graphite to ultra-hard high temp alloys.
