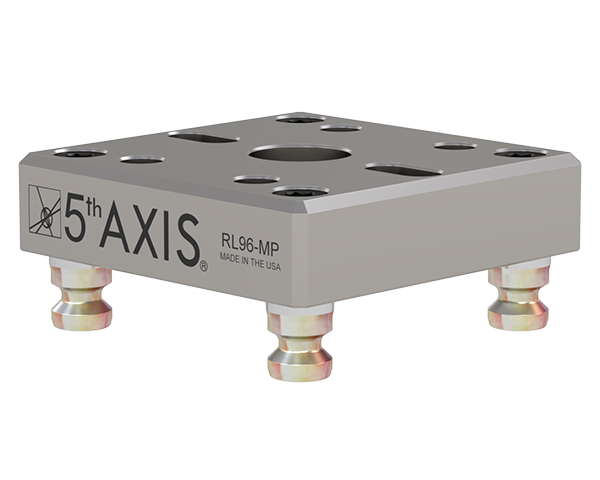

Master Alignment Pallet

Precision Alignment Tool for the RockLock™™ System
8 µm Repeatability

Setup the RockLock™ System

In order to achieve the highest level of accuracy, the Master Pallet is used to align the RockLock™ base with your CNC machine.

Ensure High Repeatability

Once the RockLock™ base is mounted onto the machine and bolts are snugged, the Master Pallet is installed and a probe or indicator is used to establish work offsets.

Simplify Programming

Established work offsets help speed up programming time when adjusting for different jobs and top tooling.

3-Axis Setup

Establish X, Y, and Z offsets.

4-Axis Setup

Establish X, Y, Z + A offsets.

5-Axis Setup

Establish X, Y, Z, A + C offsets.
